Which VW models use the MED17 ECU volkswagen?

The Engine Control Unit (ECU) is one of the most critical components in modern vehicles, med17 ecu volkswagen for managing engine performance, fuel efficiency, emissions, and overall drivability. Among the various ECUs used by Volkswagen, the MED17 ECU stands out for its advanced features and adaptability. This article explores the MED17 ECU, its role in Volkswagen vehicles, its architecture, tuning potential, common issues, and future advancements.

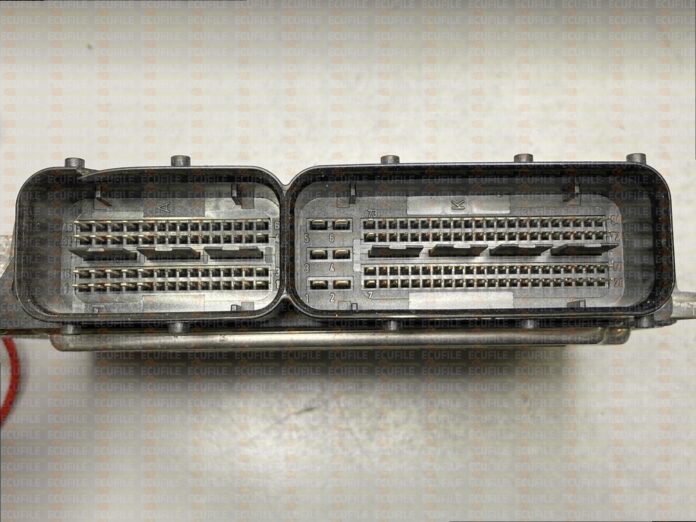

Overview of the MED17 ECU

The MED17 ECU is an engine management system designed by Bosch, used in many Volkswagen Group (VAG) vehicles, including Volkswagen, Audi, Seat, and Skoda. It is part of the Bosch MED series and is specifically designed for gasoline direct injection (GDI) engines. The ECU is responsible for optimizing fuel delivery, ignition timing, and turbocharger boost levels to enhance engine efficiency and power output.

Key Features of the MED17 ECU

  1. Advanced Fuel Injection Control: The MED17 ECU supports direct fuel injection, improving fuel atomization, combustion efficiency, and reducing emissions.
  2. Turbocharger Management: It actively controls the turbocharger boost pressure to optimize power delivery and prevent engine knock.
  3. Variable Valve Timing (VVT) Control: The ECU dynamically adjusts camshaft timing to enhance fuel efficiency and performance.
  4. Electronic Throttle Control (ETC): It manages the throttle electronically rather than using a mechanical linkage, providing smoother acceleration.
  5. Knock Control System: The ECU continuously monitors for engine knock and adjusts ignition timing accordingly.
  6. OBD-II Diagnostics & Emissions Compliance: It integrates with On-Board Diagnostics (OBD-II) to detect faults and ensure compliance with emission regulations.
  7. Flex-Fuel Capability: Some versions support ethanol-based fuels and can adjust engine parameters automatically.

MED17 ECU volkswagen Variants in Volkswagen Vehicles

Volkswagen uses different versions of the MED17 ECU, each tailored to specific engines and performance needs. Some common variants include:

  • MED17.1 – Found in high-performance Volkswagen models like the Golf GTI.
  • MED17.5 – Common in 1.8L and 2.0L TSI engines in Volkswagen vehicles.
  • MED17.7 – Used in hybrid and plug-in hybrid (PHEV) models.

Volkswagen Models Equipped with the MED17 ECU

The MED17 ECU is found in various Volkswagen vehicles, including:

  • Volkswagen Golf GTI, Golf R (2.0L TSI engines)
  • Volkswagen Jetta GLI (2.0L turbocharged engines)
  • Volkswagen Passat (1.8L and 2.0L turbocharged engines)
  • Volkswagen Tiguan (Turbocharged gasoline engines)
  • Volkswagen Arteon (High-performance models)

Tuning and Performance Upgrades for MED17 ECU

One of the biggest advantages of the MED17 ECU is its tuning potential. With the right software modifications, Volkswagen enthusiasts can significantly improve their vehicle’s power output and throttle response.

Popular ECU Tuning Strategies

  1. Stage 1 ECU Tune – A simple software flash that increases boost pressure, refines fuel maps, and adjusts ignition timing for a power boost.
  2. Stage 2 ECU Tune – Requires supporting modifications like an upgraded intake, downpipe, and exhaust system to optimize performance.
  3. Stage 3 ECU Tune – Designed for heavily modified engines, often including larger turbochargers, upgraded fuel injectors, and high-flow intercoolers.
  4. Ethanol (E85) Tuning – Some MED17 ECUs support ethanol blends, which can unlock additional horsepower with proper tuning.

Aftermarket Tuning Solutions

Several companies offer performance tuning software for the MED17 ECU, including:

  • APR Tuning
  • Unitronic
  • Revo Technik
  • Cobb Tuning
  • ECU Master

Common Issues with MED17 ECU in Volkswagen Vehicles

Despite its advanced capabilities, the MED17 ECU is not without problems. Some common issues include:

1. Software Corruption & ECU Failure

  • Improper tuning, software bugs, or voltage spikes can lead to ECU failure.
  • A failed ECU may cause hard starting, misfires, or a complete loss of power.

2. Turbocharger Overboost & Underboost Errors

  • The MED17 ECU regulates turbo boost pressure, and faulty sensors or vacuum leaks can lead to inconsistent boost control.
  • Common Diagnostic Trouble Codes (DTCs): P0234 (Overboost), P0299 (Underboost).

3. Faulty Throttle Body Control

  • Issues with the Electronic Throttle Control (ETC) system can lead to hesitation, rough idling, or limp mode activation.
  • Fix: Cleaning or replacing the throttle body and recalibrating the ECU.

4. Carbon Build-up on Intake Valves

  • Direct injection engines controlled by MED17 ECU are prone to carbon deposits on intake valves, leading to power loss.
  • Solution: Regular walnut blasting or intake cleaning.

5. Immobilizer Lock Issues

  • If the ECU is swapped or reprogrammed incorrectly, the Volkswagen immobilizer system may prevent the engine from starting.

ECU Diagnostics and Repair Solutions

For Volkswagen owners experiencing ECU-related issues, proper diagnostics and repair are essential.

How to Diagnose a Faulty MED17 ECU?

  1. Use an OBD-II Scanner: Scan for trouble codes (DTCs) using tools like VCDS (VAG-COM) or OBDeleven.
  2. Check Wiring & Ground Connections: Faulty wiring or poor grounding can cause ECU errors.
  3. Inspect Sensors & Actuators: Faulty MAF, MAP, knock sensors, or lambda (O2) sensors can trigger ECU faults.
  4. Reflash ECU Software: If a software bug is suspected, reflashing the ECU with an updated firmware may resolve the issue.
  5. ECU Replacement & Cloning: If the ECU is completely damaged, cloning the existing ECU data onto a replacement unit is an option.

Future Advancements in Volkswagen ECU Technology

Volkswagen is continuously improving its ECU technology to support electrification, autonomous driving, and enhanced connectivity.

1. Integration with Hybrid & Electric Powertrains

  • Newer Volkswagen models, like the ID.4 electric SUV, rely on more advanced ECU technology to manage battery management systems (BMS) and electric motors.

2. AI-Powered Predictive Maintenance

  • Future ECUs will utilize artificial intelligence (AI) to predict failures before they occur, reducing breakdown risks.

3. Over-the-Air (OTA) ECU Updates

  • Similar to Tesla, Volkswagen is investing in remote ECU updates, allowing owners to receive performance enhancements and bug fixes without visiting a dealership.

Conclusion

The MED17 ECU is a highly sophisticated and tunable engine management system that plays a crucial role in Volkswagen’s lineup of turbocharged gasoline vehicles. While it offers excellent performance and efficiency, it is not immune to technical challenges. Proper maintenance, diagnostics, and tuning can maximize the potential of this ECU, making it a favorite among enthusiasts and tuners alike. As ECU technology continues to evolve, Volkswagen drivers can look forward to even smarter and more efficient engine management systems in the future.
